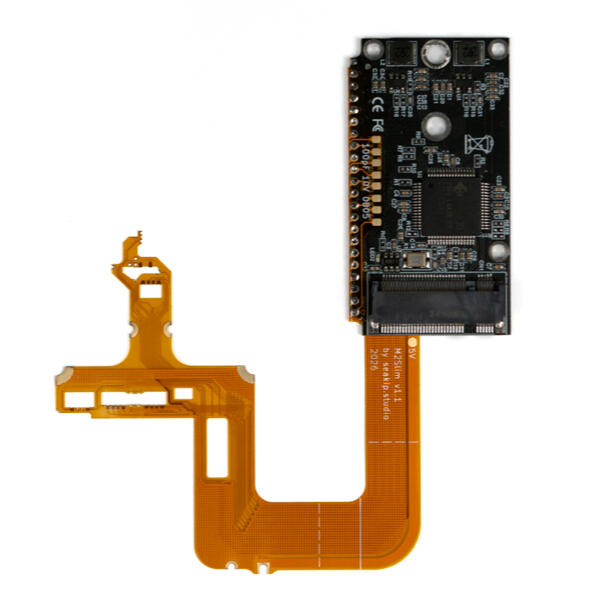

M2Slim

Full size M.2 SATA SSD mod for the 70K PS2 Slim.

Features

  • JM20330 adapter chip supports LBA-48 addressing (>128GB storage) and UDMA 6*

  • Full size 2280 B-key M.2 SATA support

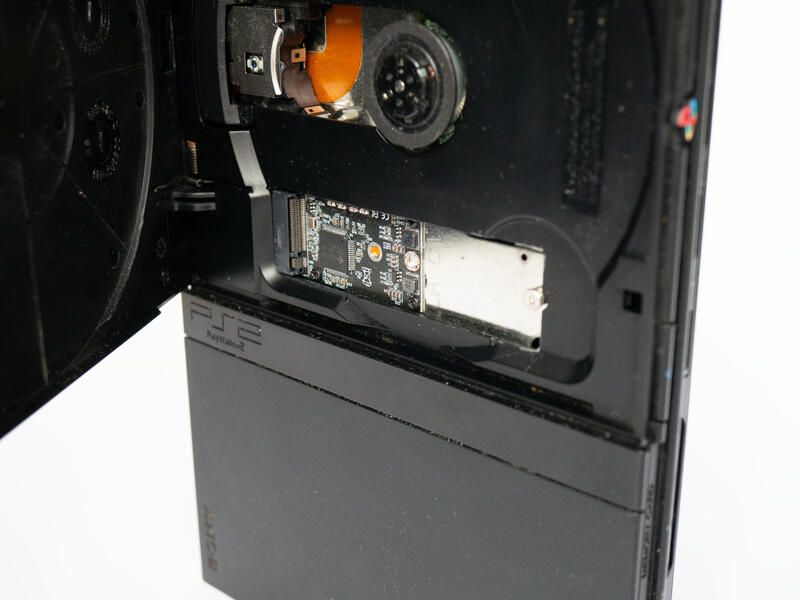

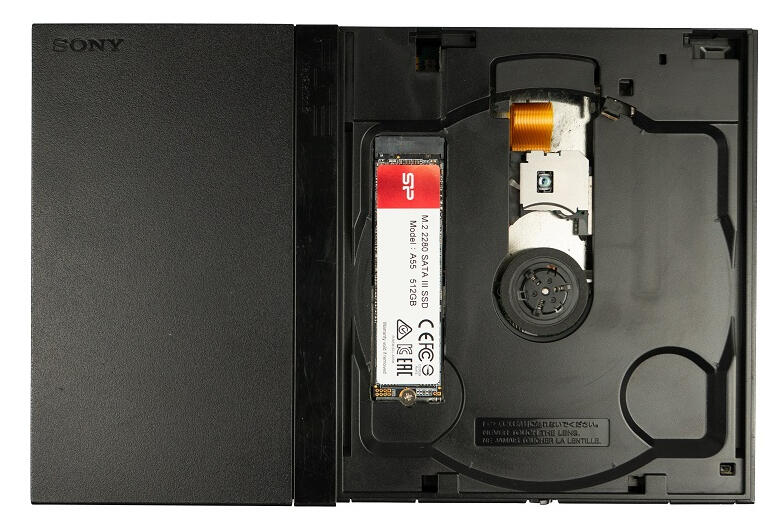

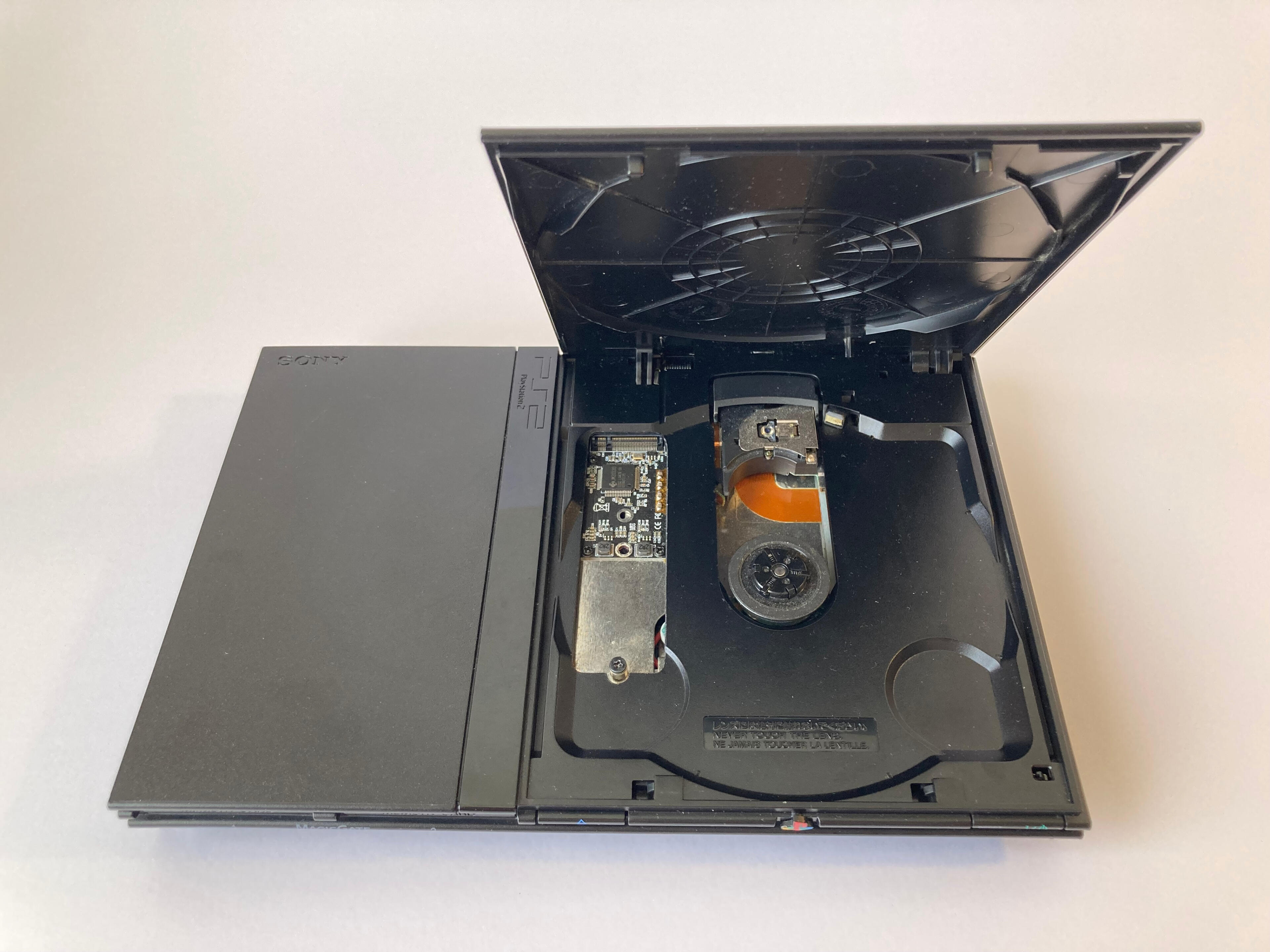

  • M.2 slot is mounted inside the disk drive for convenient access and preserves the external appearance of the console

  • DVD drive remains functional†

  • Compatible with PSBBN

  • Compatible with PixelFX Retro GEM HDMI kit

  • Optional 100pF capacitors included

* PS2 IDE hardware is bottlenecked to ~80MB/s in benchmarks and ~20MB/s in real world use.† SSD height can vary. Always check clearance before inserting a disk with an SSD.

Now selling on SmallRun

M2Slim V1.1 on SmallRun

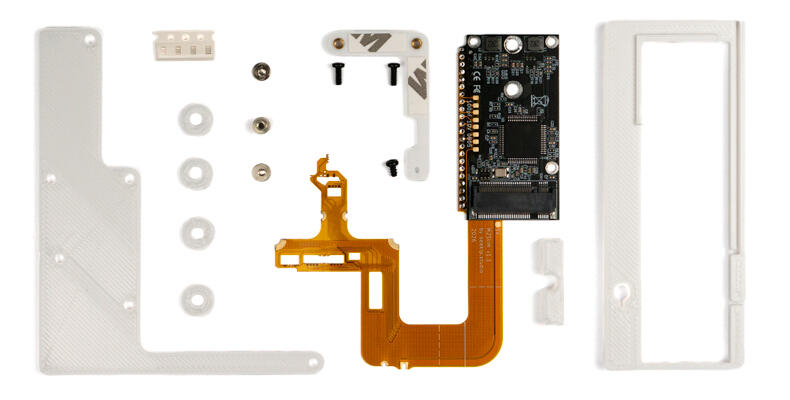

Kit Includes

1x M2Slim adapter
1x Shield drill jig
1x Shell cut jig and drill insert
4x DVD drive spacers
1x Mounting bracket
3x Mounting bracket screws
1x set of M.2 stand off and screws.
